Protected Element Transducers

Protected Element Transducers are designed for rough or uneven contact surfaces and/or high
temperature surfaces. Three styles of protective faces are offered. They are supplied standard
with a flexible membrane which is optimum for uneven or minor roughness surfaces. Optionally
available Wear Caps are better for very rough or abrasive surfaces. High Temperature delay
lines are optionally available for intermittent use on surfaces up to 500 Degrees F (260C).
Protected Element transducers are available in General Purpose or High Gain series and have
BNC style connectors.
FrequencyElement DiameterGeneral PurposeHigh Gain
0.500.50PEG00508PEP00508
0.75PEG00512PEP00512
1.00PEG00516PEP00516
1.125PEG00518PEP00518
1.000.50PEG01008PEP01008
0.75PEG01012PEP01012
1.00PEG01016PEP01016
1.125PEG01018PEP01018
2.250.50PEG02008PEP02008
0.75PEG02012PEP02012
1.00PEG02016PEP02016
1.125PEG02018PEP02018
3.500.50PEG03008PEP03008
0.75PEG03012PEP03012
1.00PEG03016PEP03016
1.125PEG03018PEP03018
5.000.50PEG05008PEP05008
0.75PEG05012PEP05012
1.00PEG05016PEP05016
1.125PEG05018PEP05018

Flexible Membrane

5 per package

DiameterPart Number
0.500PEM08
0.750PEM12
1.000PEM16
1.125PEM18

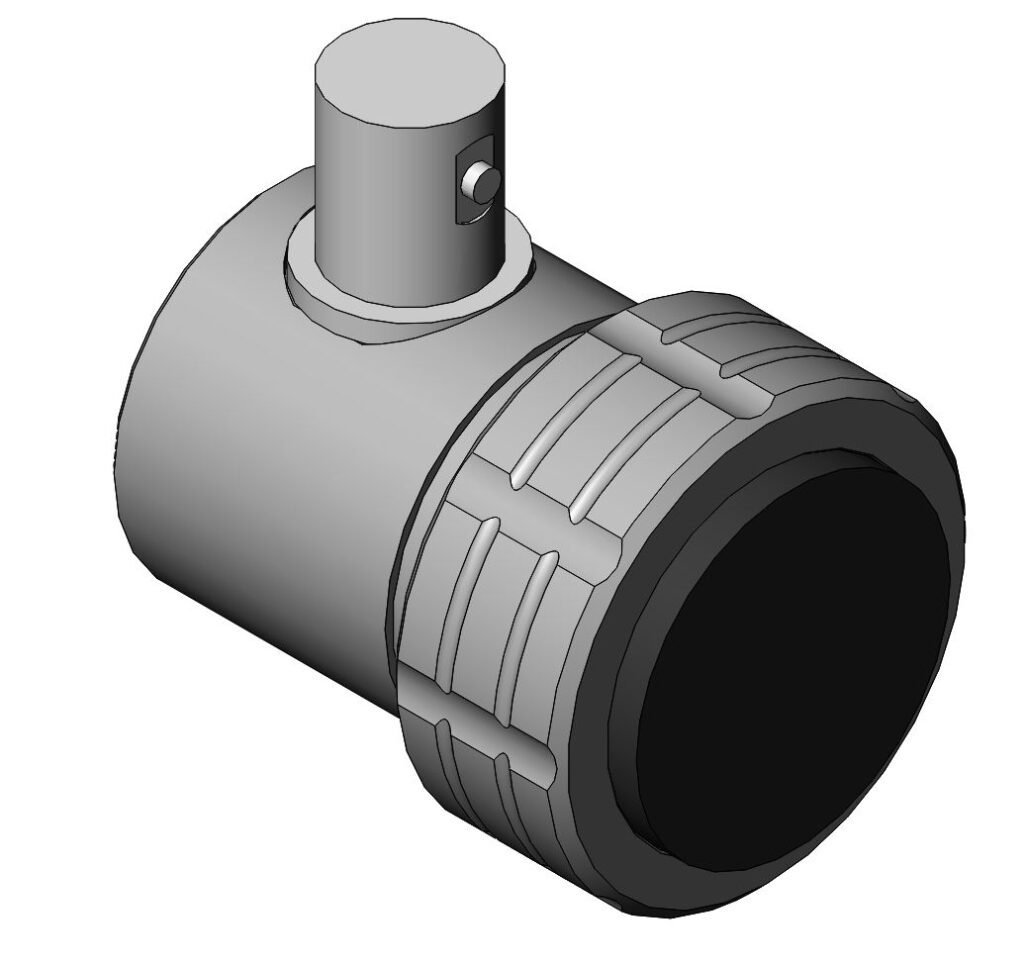

Wear Cap

5 per package

DiameterPart Number
0.500PEC08
0.750PEC12
1.000PEC16
1.125PEC18

High Temperature Delay 1"

1″ Long

DiameterPart Number
0.500PED08
0.750PED12
1.000PED16
1.125PED18

Housing Dimensions

DiameterABC
0.5000.701.300.95
0.7500.951.301.18
1.0001.301.301.36
1.1251.331.301.49
